Key Features
Modular system comprising PVC-u covers, aluminium retainers and finishing accessories
Replaceable, through coloured, easy-to-clean covers
Closed slots ensure ends remain in place in event of severe high impact
Reveals provide tight, neat joints with bactericidal polymer
Product Showcase

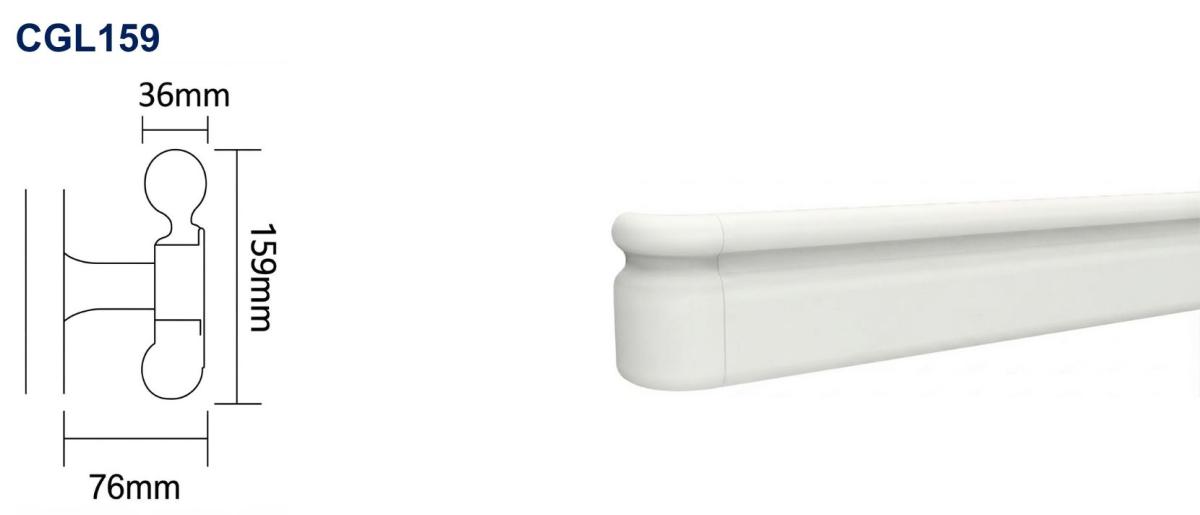

Model: CGL 159
| Product No | CGL 159 |
| Material | Vinyl cover + aluminum retainer |
| Overall Dimensions | 36W x 159H mm |
| Aluminum | 1.4 / 1.6 mm thickness |
| Vinyl Cover | 2mm thickness |

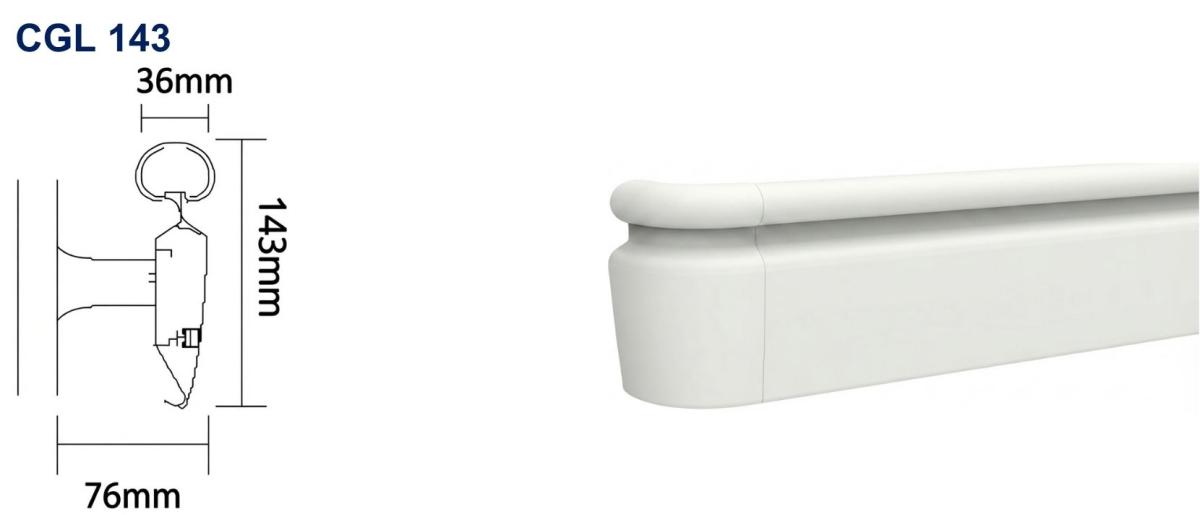

Model: CGL 143
| Product No | CGL 143 |
| Material | Vinyl cover + aluminum accessories |
| Overall Dimensions | 143H mm |
| Aluminum | 1.6mm thickness |
| Vinyl Cover | 2mm thickness |

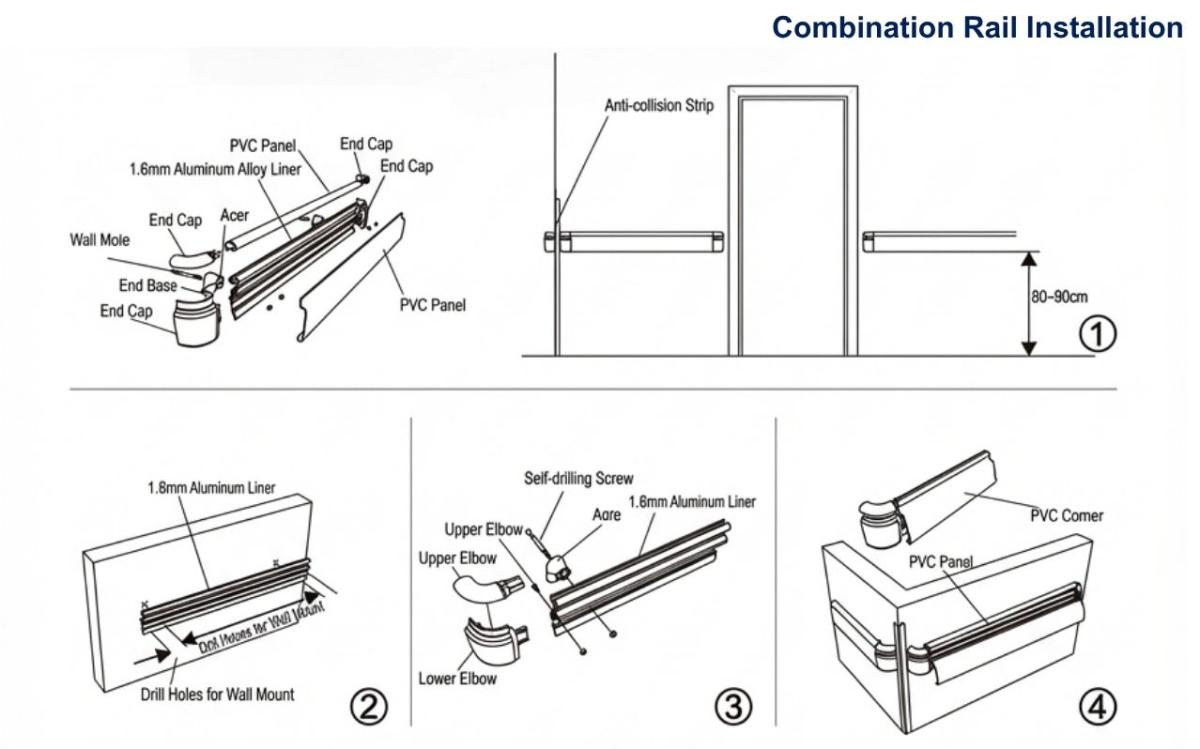

Installation Steps
1
Measure
Measure and mark the desired height on the wall surface for precise alignment.
2
Drill & Secure
Drill holes and firmly secure the 1.8mm aluminum liner base using heavy-duty bolts.
3
Install Brackets
Install the upper and lower elbows and secure all supporting brackets with screws.
4
Snap Cover
Snap the PVC panel cover over the aluminum retainer and attach the corner caps.
×
![]()
